Input/output module with 4DI, 4RO and PT-100, with a remote serial communication to extend the information collection capabilities of our measurement and control systems.
MIO 4410 is a general purpose input/output module with increased durability and flexible DI/DO options. It is designed for rail installation and does not have a local display. This concept is suitable for a wide range of robust applications in building automation and manufacturing processes, for remote supervision of infrastructure. It can be easily combined with our measurement instruments to complement its standard features. For connection to the master control system there is a communication line RS-485 with Modbus support. Each MIO module can be also used as a standalone unit in other applications.
MIO 4410 device is by default equipped with:
- four unipolar digital inputs 12-24V with a common C terminal, and galvanically isolated between the communication port and other peripherals.
- four relay outputs 2x 30Vdc/250Vac,5A as two pairs with a common C terminal and galvanically isolated between the communication port and other peripherals.
- one PT-100 input for external temperature measurement.

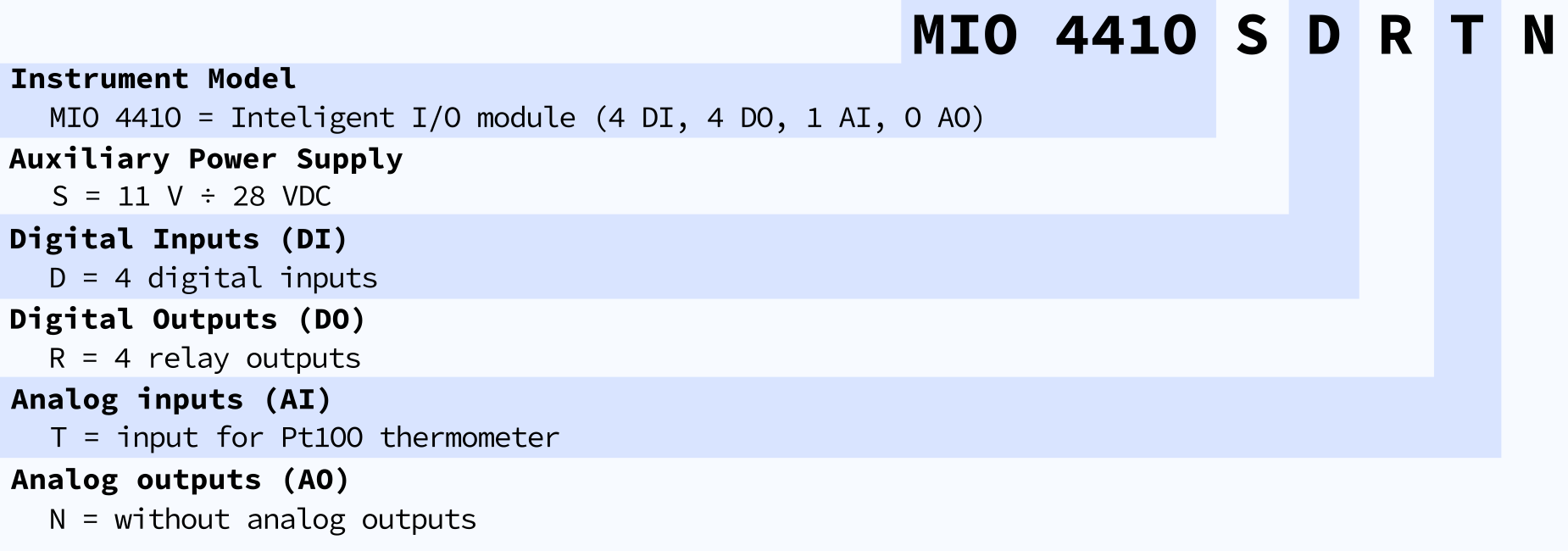

Types and options
